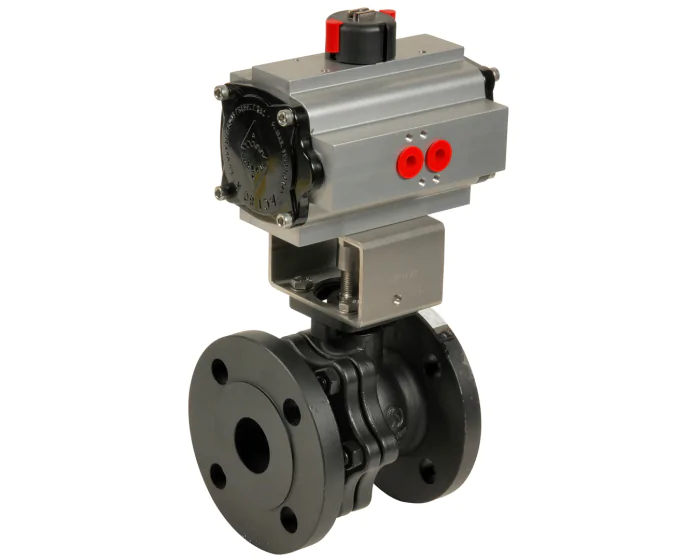

The 752 series carbon steel ball valve has an A216WCB steel body and a CF8M carbon steel ball. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN150. It has a split body, TS: -20°C/+200°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Seats | TFM 1600 |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Double acting | 274282015100 | S1002762 |
€282.94
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' Spring return | 274282016101 | S1002763 |
€316.13
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Double acting | 274283015100 | S1002764 |
€295.67
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' Spring return | 274283016101 | S1002765 |
€332.09
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Double acting | 274284015100 | S1002766 |
€334.91
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' Spring return | 274284016102 | S1002767 |
€420.41
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Double acting | 274285015101 | S1002768 |
€399.34
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN32 - 1''1/4 Spring return | 274285016102 | S1002769 |
€466.51
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Double acting | 274286015101 | S1002770 |
€442.26
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 Spring return | 274286016102 | S1002771 |
€489.07
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Double acting | 274287015102 | S1002772 |
€512.04
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN50 - 2'' Spring return | 274287016104 | S1002773 |
€606.90
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Double acting | 274288015103 | S1002774 |
€621.29
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN65 - 2''1/2 Spring return | 274288016105 | S1002775 |
€823.00
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Double acting | 274289015103 | S1002776 |
€807.27
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' Spring return | 274289016105 | S1002777 |
€995.03
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Double acting | 274290015104 | S1002778 |
€1,101.11
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' Spring return | 274290016106 | S1002779 |
€1,349.14
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Double acting | 274291015105 | S1002780 |
€1,731.69
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN125 - 5'' Spring return | 274291016107 | S1002781 |
€2,079.66
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Double acting | 274292015106 | S1002782 |
€2,229.70
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' Spring return | 274292016107 | S1002783 |
€2,488.93
(excl. btw)
|
add to cart |
